Slack

Slack is a messaging service widely adopted for internal team communication. ArgoCD can push notifications to Slack channels, providing visibility into Kubernetes cluster changes. GitHub repository integration allows subscribing to repository events for notifications on pull requests and version changes.

Git Integration

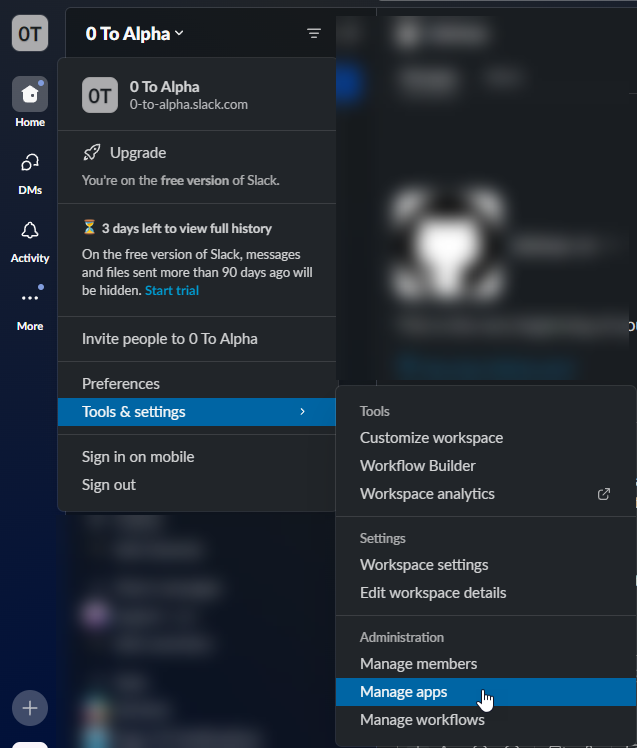

Once you have a Slack organization setup (It's quite easy to make one, just follow the signup steps), you will need to go to Manage Apps.

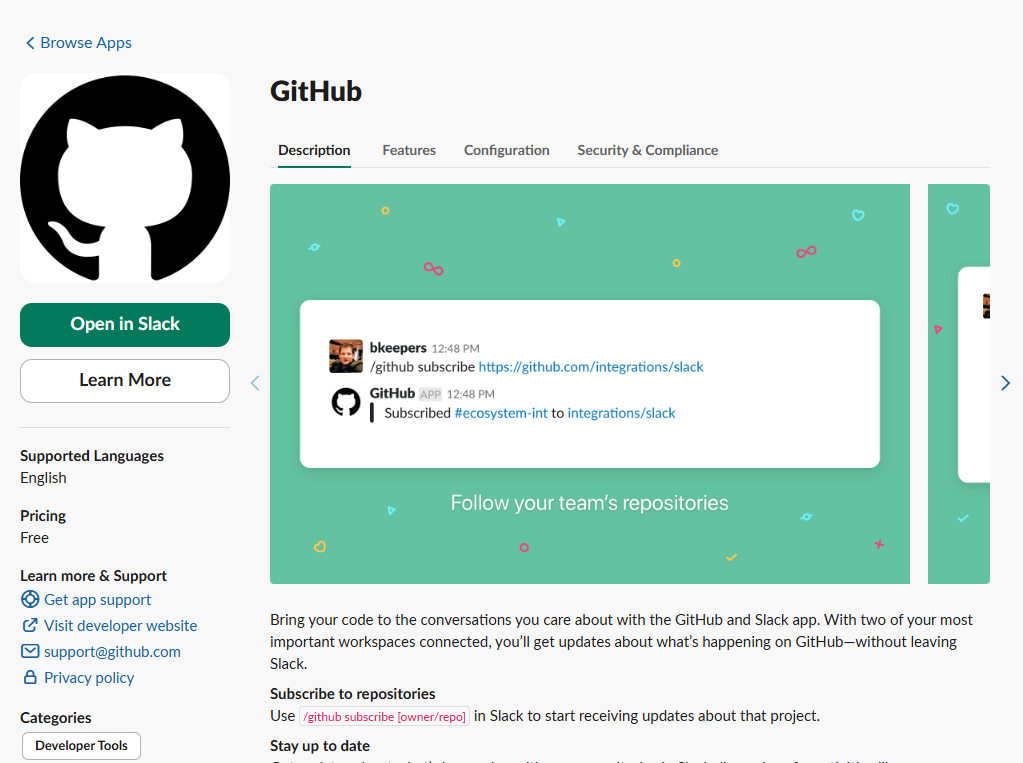

Search for GitHub and install it

A recommended approach is to subscribe each microservice repository to a dedicated Slack channel. To subscribe a repository to a channel, run:

github /subscribe [owner/repo]

For example, to subscribe a repository named clock, run the command in the #clock channel:

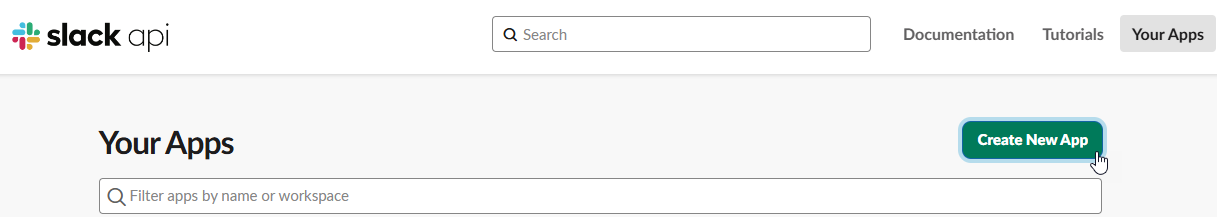

With Kubernetes installed, notifications can be pushed to Slack channels when versions are deployed and clusters update. Create two channels—#staging and #production—to receive notifications for respective environments. Navigate to Manage Your Apps and select 'Create New App'.

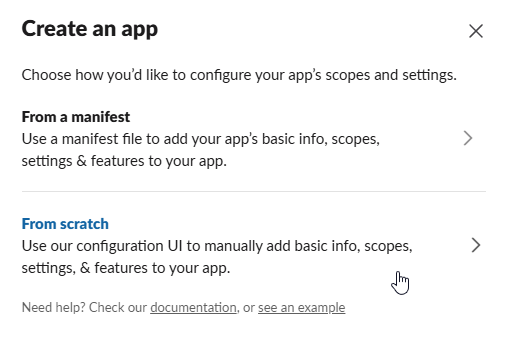

Select 'From Scratch'

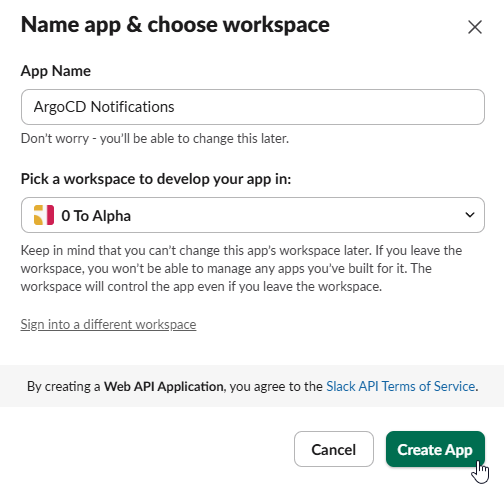

Name App and Select Workspace

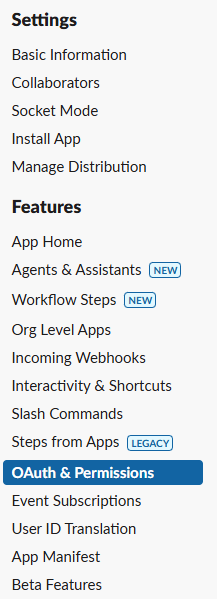

Now go to OAuth & Permissions

tip

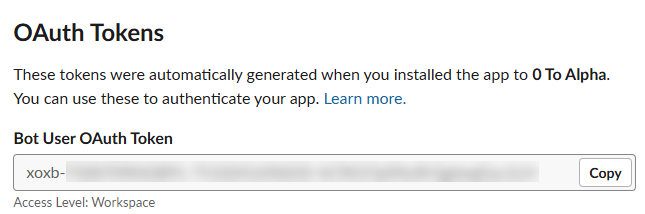

Save the Bot User OAuth Token, you will need this later for ArgoCD Notifications.

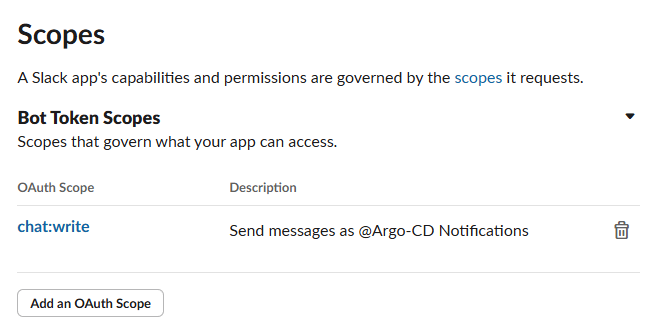

Go to Scopes and add chat:write

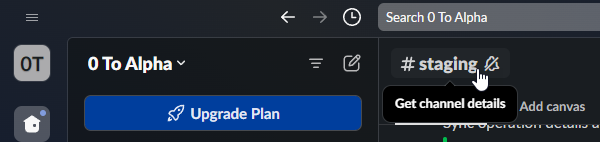

In your Slack Client, the one you installed, go to the channel and select integrations.

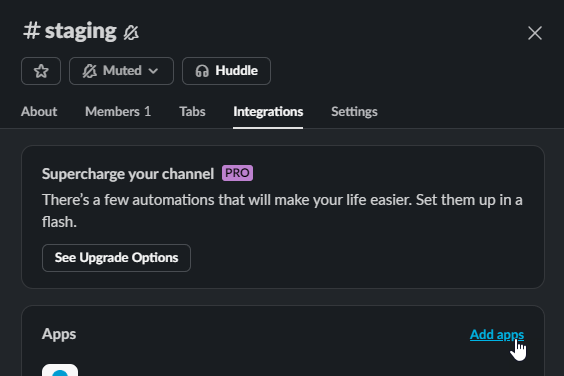

Go to Integrations and select Add Apps

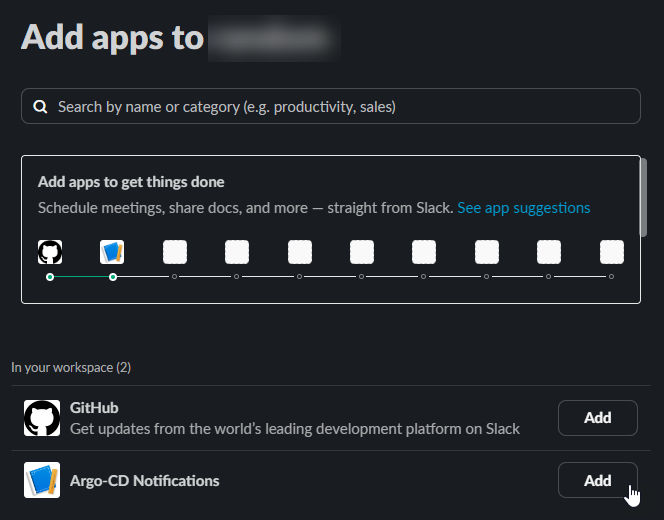

Search for your App

Now back onto our kubernetes server machines, we will need to install ArgoCD-Notifications. On each Kubernetes server run the following:

kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/notifications_catalog/install.yaml

You will now need to apply the notification configuration, to do so make a file called slackNotifications.yaml and add the following:

warning

Replace the following:

• SLACK_TOKEN
• EMAIL_HOST
• EMAIL_PORT
• EMAIL_USERNAME
• EMAIL_PASSWORD
• EMAIL_ADDRESS

apiVersion: v1
kind: Secret
metadata:
  name: argocd-notifications-secret
  namespace: argocd
stringData:
  slack-token: SLACK_TOKEN
  email-host: EMAIL_HOST
  email-port: EMAIL_PORT
  email-username: EMAIL_USERNAME
  email-password: EMAIL_PASSWORD
  email-address: EMAIL_ADDRESS
type: Opaque
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: argocd-notifications-cm
data:
  service.slack: |
    token: $slack-token
  service.email.gmail: |
    username: $email-username
    password: $email-password
    host: $email-host
    port: $email-port
    from: $email-address
  template.app-deployed: |
    email:
      subject: New version of an application {{.app.metadata.name}} is up and running.
    message: |
      {{if eq .serviceType "slack"}}:white_check_mark:{{end}} Application {{.app.metadata.name}} is now running new version of deployments manifests.
    slack:
      attachments: |
        [{
          "title": "{{ .app.metadata.name}}",
          "title_link":"{{.context.argocdUrl}}/applications/{{.app.metadata.name}}",
          "color": "#18be52",
          "fields": [
          {
            "title": "Sync Status",
            "value": "{{.app.status.sync.status}}",
            "short": true
          },
          {
            "title": "Repository",
            "value": "{{.app.spec.source.repoURL}}",
            "short": true
          },
          {
            "title": "Revision",
            "value": "{{.app.status.sync.revision}}",
            "short": true
          }
          {{range $index, $c := .app.status.conditions}}
          {{if not $index}},{{end}}
          {{if $index}},{{end}}
          {
            "title": "{{$c.type}}",
            "value": "{{$c.message}}",
            "short": true
          }
          {{end}}
          ]
        }]
  template.app-health-degraded: |
    email:
      subject: Application {{.app.metadata.name}} has degraded.
    message: |
      {{if eq .serviceType "slack"}}:exclamation:{{end}} Application {{.app.metadata.name}} has degraded.
      Application details: {{.context.argocdUrl}}/applications/{{.app.metadata.name}}.
    slack:
      attachments: |-
        [{
          "title": "{{ .app.metadata.name}}",
          "title_link": "{{.context.argocdUrl}}/applications/{{.app.metadata.name}}",
          "color": "#f4c030",
          "fields": [
          {
            "title": "Sync Status",
            "value": "{{.app.status.sync.status}}",
            "short": true
          },
          {
            "title": "Repository",
            "value": "{{.app.spec.source.repoURL}}",
            "short": true
          }
          {{range $index, $c := .app.status.conditions}}
          {{if not $index}},{{end}}
          {{if $index}},{{end}}
          {
            "title": "{{$c.type}}",
            "value": "{{$c.message}}",
            "short": true
          }
          {{end}}
          ]
        }]
  template.app-sync-failed: |
    email:
      subject: Failed to sync application {{.app.metadata.name}}.
    message: |
      {{if eq .serviceType "slack"}}:exclamation:{{end}}  The sync operation of application {{.app.metadata.name}} has failed at {{.app.status.operationState.finishedAt}} with the following error: {{.app.status.operationState.message}}
      Sync operation details are available at: {{.context.argocdUrl}}/applications/{{.app.metadata.name}}?operation=true .
    slack:
      attachments: |-
        [{
          "title": "{{ .app.metadata.name}}",
          "title_link":"{{.context.argocdUrl}}/applications/{{.app.metadata.name}}",
          "color": "#E96D76",
          "fields": [
          {
            "title": "Sync Status",
            "value": "{{.app.status.sync.status}}",
            "short": true
          },
          {
            "title": "Repository",
            "value": "{{.app.spec.source.repoURL}}",
            "short": true
          }
          {{range $index, $c := .app.status.conditions}}
          {{if not $index}},{{end}}
          {{if $index}},{{end}}
          {
            "title": "{{$c.type}}",
            "value": "{{$c.message}}",
            "short": true
          }
          {{end}}
          ]
        }]
  template.app-sync-running: |
    email:
      subject: Start syncing application {{.app.metadata.name}}.
    message: |
      The sync operation of application {{.app.metadata.name}} has started at {{.app.status.operationState.startedAt}}.
      Sync operation details are available at: {{.context.argocdUrl}}/applications/{{.app.metadata.name}}?operation=true .
    slack:
      attachments: |-
        [{
          "title": "{{ .app.metadata.name}}",
          "title_link":"{{.context.argocdUrl}}/applications/{{.app.metadata.name}}",
          "color": "#0DADEA",
          "fields": [
          {
            "title": "Sync Status",
            "value": "{{.app.status.sync.status}}",
            "short": true
          },
          {
            "title": "Repository",
            "value": "{{.app.spec.source.repoURL}}",
            "short": true
          }
          {{range $index, $c := .app.status.conditions}}
          {{if not $index}},{{end}}
          {{if $index}},{{end}}
          {
            "title": "{{$c.type}}",
            "value": "{{$c.message}}",
            "short": true
          }
          {{end}}
          ]
        }]
  template.app-sync-status-unknown: |
    email:
      subject: Application {{.app.metadata.name}} sync status is 'Unknown'
    message: |
      {{if eq .serviceType "slack"}}:exclamation:{{end}} Application {{.app.metadata.name}} sync is 'Unknown'.
      Application details: {{.context.argocdUrl}}/applications/{{.app.metadata.name}}.
      {{if ne .serviceType "slack"}}
      {{range $c := .app.status.conditions}}
          * {{$c.message}}
      {{end}}
      {{end}}
    slack:
      attachments: |-
        [{
          "title": "{{ .app.metadata.name}}",
          "title_link":"{{.context.argocdUrl}}/applications/{{.app.metadata.name}}",
          "color": "#E96D76",
          "fields": [
          {
            "title": "Sync Status",
            "value": "{{.app.status.sync.status}}",
            "short": true
          },
          {
            "title": "Repository",
            "value": "{{.app.spec.source.repoURL}}",
            "short": true
          }
          {{range $index, $c := .app.status.conditions}}
          {{if not $index}},{{end}}
          {{if $index}},{{end}}
          {
            "title": "{{$c.type}}",
            "value": "{{$c.message}}",
            "short": true
          }
          {{end}}
          ]
        }]
  template.app-sync-succeeded: |
    email:
      subject: Application {{.app.metadata.name}} has been successfully synced.
    message: |
      {{if eq .serviceType "slack"}}:white_check_mark:{{end}} Application {{.app.metadata.name}} has been successfully synced at {{.app.status.operationState.finishedAt}}.
      Sync operation details are available at: {{.context.argocdUrl}}/applications/{{.app.metadata.name}}?operation=true .
    slack:
      attachments: "[{\n  \"title\": \"{{ .app.metadata.name}}\",\n  \"title_link\":\"{{.context.argocdUrl}}/applications/{{.app.metadata.name}}\",\n  \"color\": \"#18be52\",\n  \"fields\": [\n  {\n    \"title\": \"Sync Status\",\n    \"value\": \"{{.app.status.sync.status}}\",\n    \"short\": true\n  },\n  {\n    \"title\": \"Repository\",\n    \"value\": \"{{.app.spec.source.repoURL}}\",\n    \"short\": true\n  }\n  {{range $index, $c := .app.status.conditions}}\n  {{if not $index}},{{end}}\n  {{if $index}},{{end}}\n  {\n    \"title\": \"{{$c.type}}\",\n    \"value\": \"{{$c.message}}\",\n    \"short\": true\n  }\n  {{end}}\n  ]\n}]    "
  trigger.on-deployed: |
    - description: Application is synced and healthy. Triggered once per commit.
      oncePer: app.status.sync.revision
      send:
      - app-deployed
      when: app.status.operationState.phase in ['Succeeded'] and app.status.health.status == 'Healthy'
  trigger.on-health-degraded: |
    - description: Application has degraded
      send:
      - app-health-degraded
      when: app.status.health.status == 'Degraded'
  trigger.on-sync-failed: |
    - description: Application syncing has failed
      send:
      - app-sync-failed
      when: app.status.operationState.phase in ['Error', 'Failed']
  trigger.on-sync-running: |
    - description: Application is being synced
      send:
      - app-sync-running
      when: app.status.operationState.phase in ['Running']
  trigger.on-sync-status-unknown: |
    - description: Application status is 'Unknown'
      send:
      - app-sync-status-unknown
      when: app.status.sync.status == 'Unknown'
  trigger.on-sync-succeeded: |
    - description: Application syncing has succeeded
      send:
      - app-sync-succeeded
      when: app.status.operationState.phase in ['Succeeded']
binaryData: {}

Now apply the configuration via:

kubectl apply -f slackNotifications.yaml
